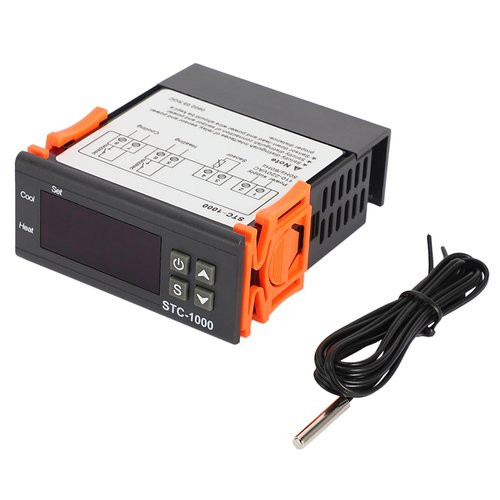

STC-1000 hőmérséklet szabályzó termosztát + szonda

Méretek:
Első panel: 76x 36 mm
Hátsó rész: 71x 29mm
A termék mérete: 76x 36x 86 mm -
Szenzor hossza: 1 m

Technikai paraméterek:
Működési feszültség: 110~ 220V AC 10% , 50 / 60 Hz
Bekapcsolt állapotban a fogyasztás: < 3W
Méréstartomány: -50°C~90°C

Hysteresis accuracy: 0.1 ° C
Refresh rate: 0.5 S
Felbontás: 0,1°C - Szenzor: NTC (1db)
Pontosság: ±1°C (-50°C~70°C) - Szenzor hiba késleltetés: 1 perc
Működtetési légtér hőmérséklete: 0°C-60°C
Tárolási hőmérséklet: -30°C~75°C
Megengedett relatív légnedvesség: 20~85%RH
(Kondenzáció ne legyen)
Jelölések:
„S”= Beállítás
„Ọ”= Kilépés/ Kikapcsolás
„↑”= Léptetés
„↓”= Léptetés

• Dual heating and cooling function, automatic over temperature alarm.
• Temperature Calibration，Refrigerating control output delay protection.
• Control temperature by setting the temperature set value and the different value.（Fahrenheit and Celsius Display Can Be Choose )
• Temperature Measuring Range: -50 - 90 Deg.C(-58℉-194℉)，Resolution: 0.1 Deg.C
• Can be Used for Domestic Freezer, Water Tanks, Refrigerator, Aquarium, Homebrewing Beer, Chicken Incubator, etc, also suitable for Laboratories use and other temperature-controlled systems.
• Large and clear LCD display.

Description:

• Mini and light weight design
• Large and clear LCD display
• Wide Temperature Range (-50℃-90℃)(-58℉-194℉)
• This mini Temperature Controller is an excellent and convenient multifunction device for controlling temperature in Aquariums.
• The stability of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish.
• This advanced temperature controller can measure and control temperature from -50°C to 90 °C.

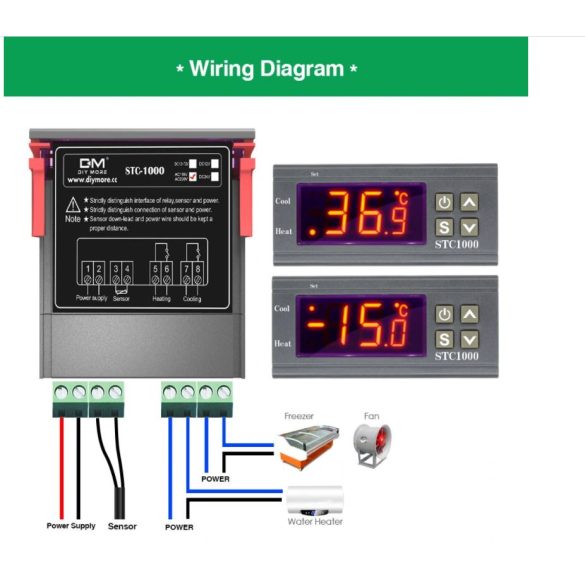

• Wiring diagram for installation included.(Need instructions, please contact us)
• Suitable to the following machines: beer dispenser systems, blast chillers, cold room, fish fridges, freezer counters, half height chillers/freezers, ice cream freezers, mini bars, upright display coolers/ freezers, upright storage freezers/ coolers, wall site freezers, wine display chillers.

Specifications:

• Temperature Measuring Range: -50 - 90 Deg.C(-58℉-194℉)
• Control temperature range: -50 - 90 Deg.C (adjustable)
• Control temperature difference: 0.3 - 10 Deg.C (adjustable)
• Resolution: 0.1 Deg.C
• Accuracy: 1 Deg.C (-50 - 70 Deg.C)
• Sensor: NTC sensor
• Sensor error delay: 1 minute
• Relay contact capacity (Heating): 10A (max) 250 V
• Relay contact capacity (Cooling): 10 A (max) 250 V
• Compressor delay protection time: 1 ~ 10 minutes (adjustable)
• Environmental requirements: -10 ~ 60 ℃
• Operating Temperature: 0 - 60 Deg.C (32℉-140℉)
• Storage Temperature: -30 - 75 Deg.C (-22℉-167℉)
• Operating Relative Humidity: 20 ~ 85 % (No condensation)
• Alarm Output : Buzzer
• Power Supply: 110~ 220V AC 10% , 50 / 60 Hz
• Power consumption: < 3 W
• Cable length: 1 M
• Item dimensions: approx. 84*69*34 MM (3.3*2.7*1.3 in)
• Net weight:138g (4.87 OZ)
