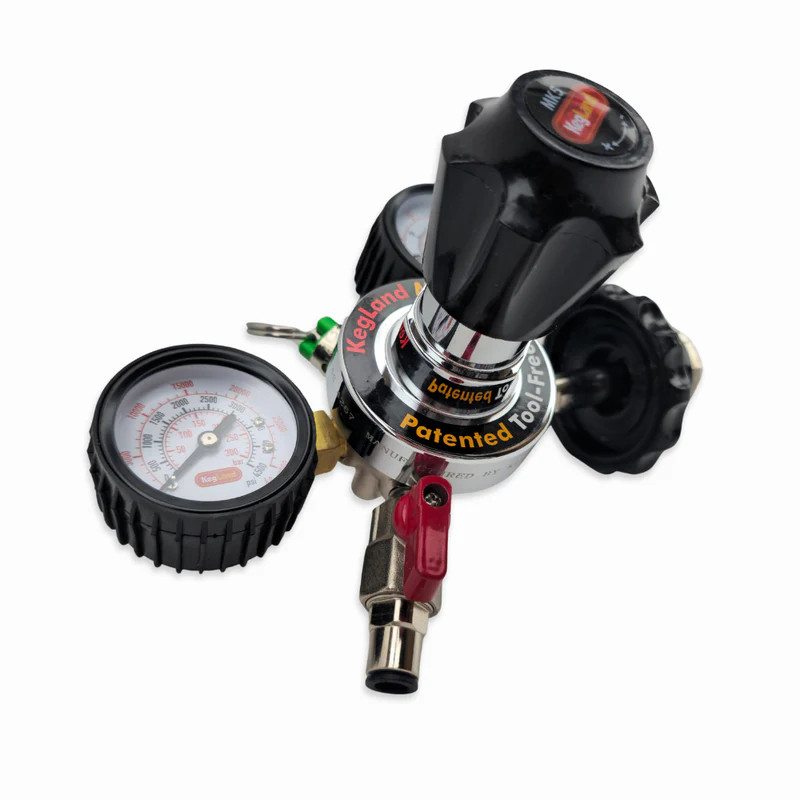

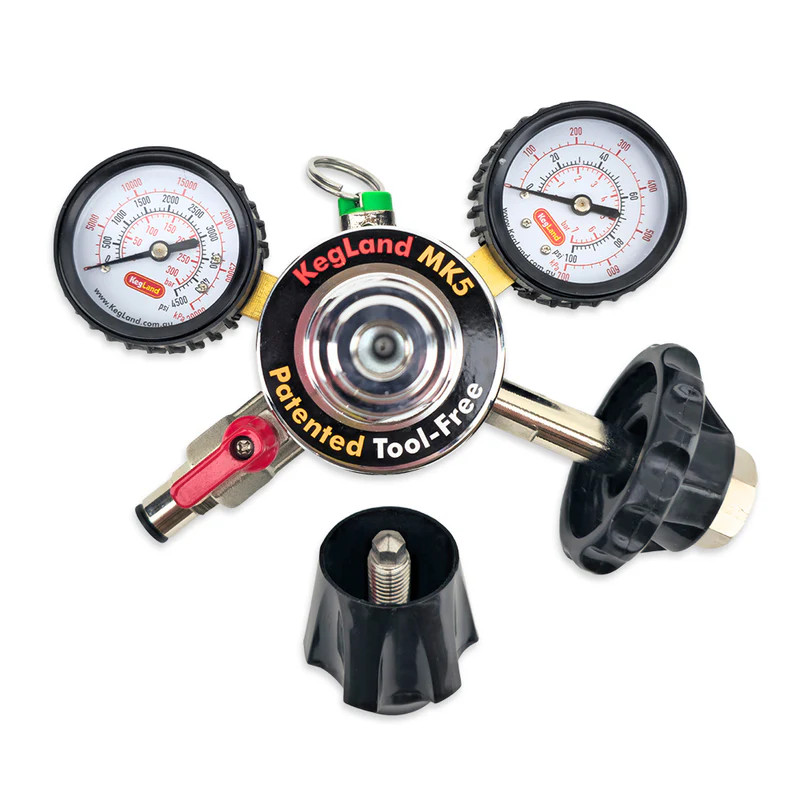

Type 30 - MK5 CO2 Regulator - Tool-Free - Dual Gauge (4.5bar PRV & 100psi Gauge)

Latest Features

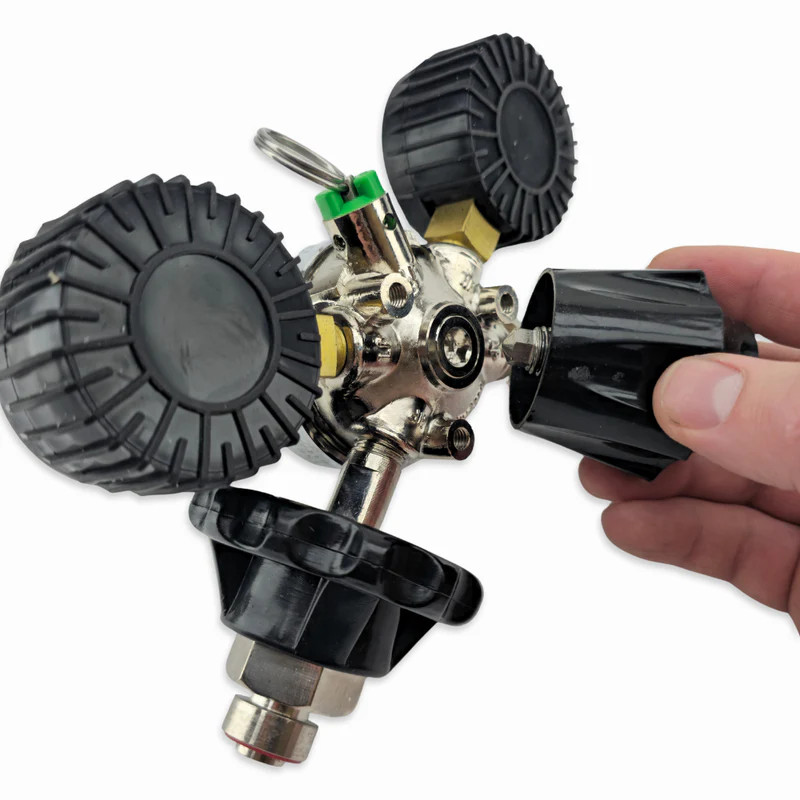

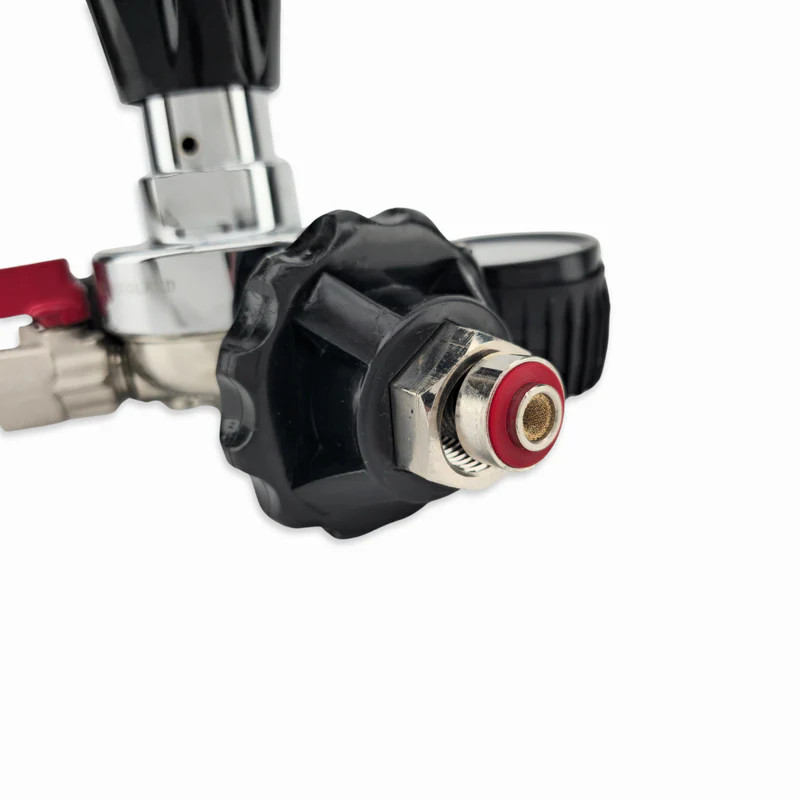

1. One handed tightening to the Cylinder. No spanner / wrench is required to attach the Regulator to your CO2 Cylinder. You can easily attach it with the nut-hand-wheel with one hand.
This is due to a new spigot seal design that easily compresses without risk of damaging the seal or leaking.

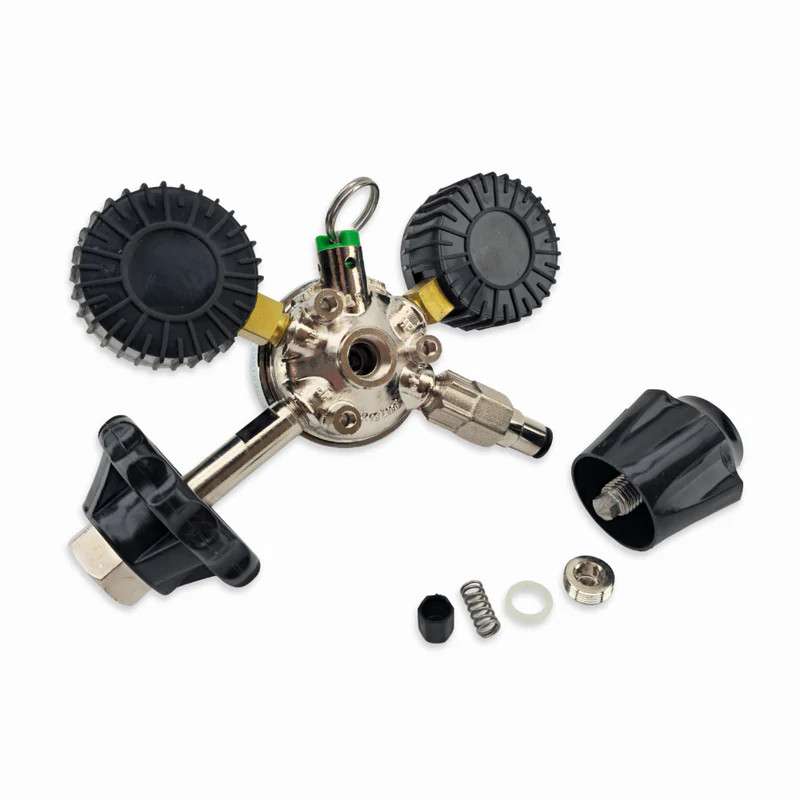

2. Self servicing maintenance without the need for a vice or specialised equipment. Now with the regulators internals being shrunk down and accessible from the back plate. You can now easily undo the area with the regulator knob that has an M8 Hex / Allen key head and clean out your regulator if you have a contaminant get in there.

3. Output with Check Valve, Ball Valve & Integrated 8mm duotight push in.

4.  Triple scale Class 2.5 Gauges in kPa, Bar and PSI  (+-2.5% Accuracy)

5.  Brand new seat cap assembly design. The new seat cap is made of ultra high molecular polyethylene. That basically means from hardcore use and abuse that us homebrewers give regulators like force carbonating. The seat cap that is bouncing up and down is less likely to scratch and create brass finings that could otherwise cause pressure creep down the line from an internal contaminant going upstream.

6. Stronger Steel Gauges made from thicker steel

7,  Colour Coded PRV valves.  This unit comes with a 65psi Green PRV.  It does not come with a Red 35psi or Grey 100psi PRV

8. M6 Mounting Holes for easy Mounting. Please note, you will need to remove the nut-wheel as it will foul when mounting flat.

Optional Accessories
KL41546 - Heavy Duty Black Gauge Guard for MK5 Regulator
(Please Note: if you are mounting this with the assistance of a KL06798 - High Pressure Extension Hose - (180cm) you will need to remove the easy grip wheel on the type 30 nut and stem or replace the entire nut and stem -> KL02202 - Type 30 - Nut & Stem (CO2))

KL45612 Replacement Red MK5 Easy-Tight Washer


Suits KegLand Branded CO2 Cylinders:
KL01489 -  2.6kg CO2 Gas Cylinder
KL01496 - 6.0kg CO2 Gas Cylinder
(Please note: This is made purpose built for the KegLand branded 2.6kg and 6.0kg Cylinders. If you use a BOC / SupaGAS / Other Cylinder, you may need to either remove the larger nut OR replace the nut and stem piece -> KL02202 - Type 30 - Nut & Stem (CO2))

Specifications
